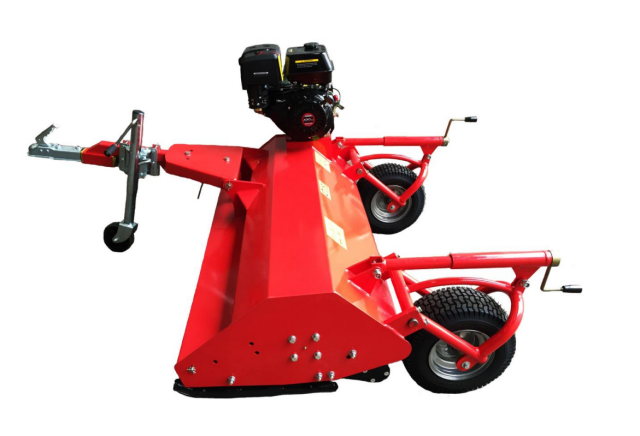

ATV-E150 Flail Mower
Changzhou Aiemery ATV-E150 Flail Mower is fantastically rugged and portable towable mower, with 15hp petrol engine. ATV-E150 is perfect for quad bikes, 4x4s and UTVs. It is fast easy height adjustment, and pivoting tow hitch allows great tracking over uneven terrain.
Features of AIEMERY ATV-E150 Flail Mowers
Rear mounted wheels – Cuts right up to the boundary

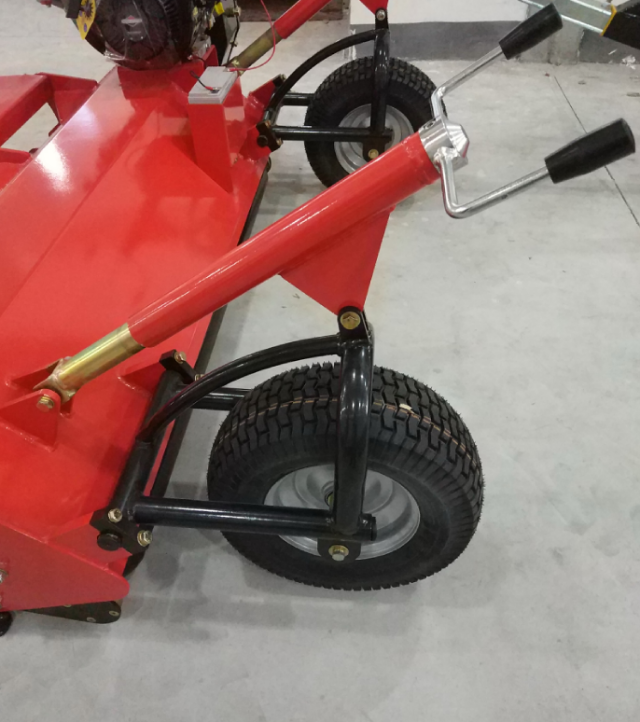

Patented independent rear wheel cage adjustment – Cut easily on a gradient
Externally mounted bearings for easy lubrication

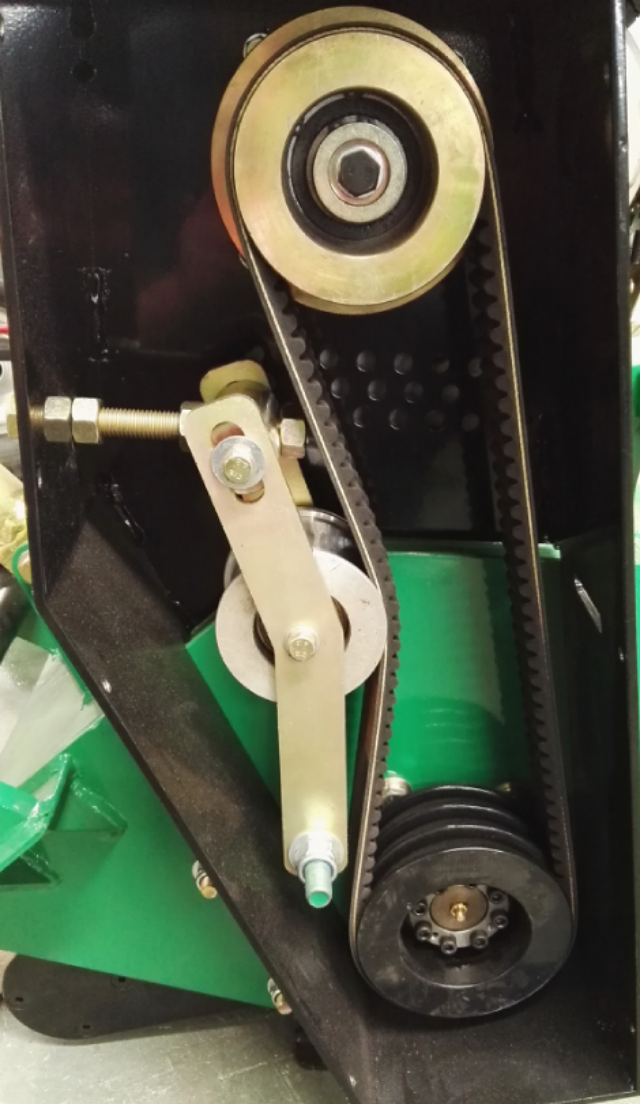

Unique belt tensioning design – Maximum power transfer, no tensioner pulley required
Durable and robust 6mm powder coated body
Large rear roller – No scalping, and facilitates fast re-fertilisation
Adjustable Offset – Adjust to In-line, partial, and full
‘Y’ type flails for all-round general-purpose use
Fits standard 50mm tow ball
Specifications of AIEMERY ATV-E150 Flail Mower
| Specification | ATV-E150 |
| Weight | 320kgs |
| Working width | 1.5m |
| Overall width | 1.8m |
| Working efficiency | 2000-3000㎡/h |
| Number of flails | 32 CUT or 64 Y blade |
| Engine | 15HP Key start Loncin or 13.5HP Key start B&S |
| Belts | 3 ×B1067 V belts |
| Cutting height | 10mm-250mm |
| Belt tension | Adjustable |
| Rotor tube size | 108×8mm |
| Roller tube size | 105×5mm |
| Frame thickness | 4mm |
| Side wall thickness | 6mm |
| Tyre model | 16×6.50-8 |
