Flail Mower DPS-A
Flail Mower DPS-A

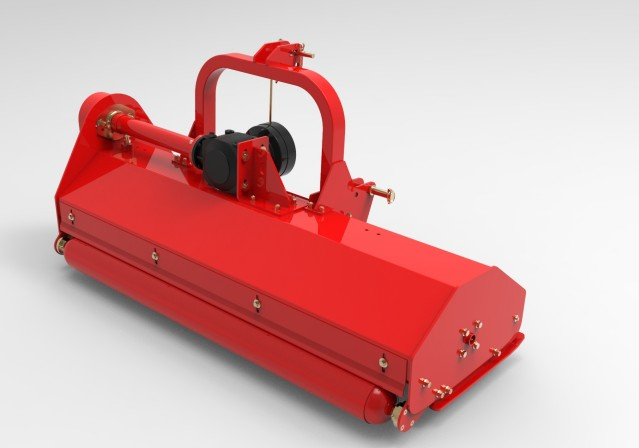

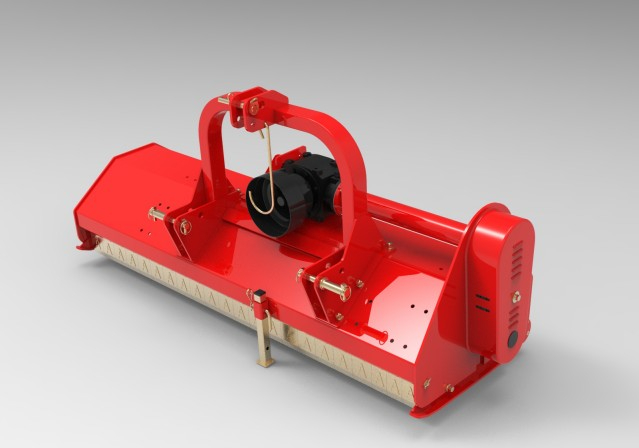

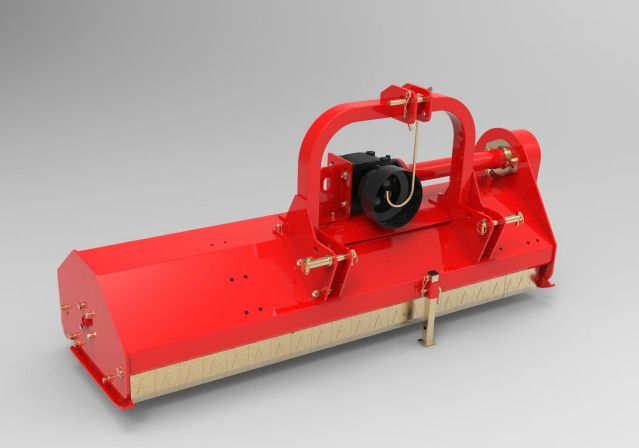

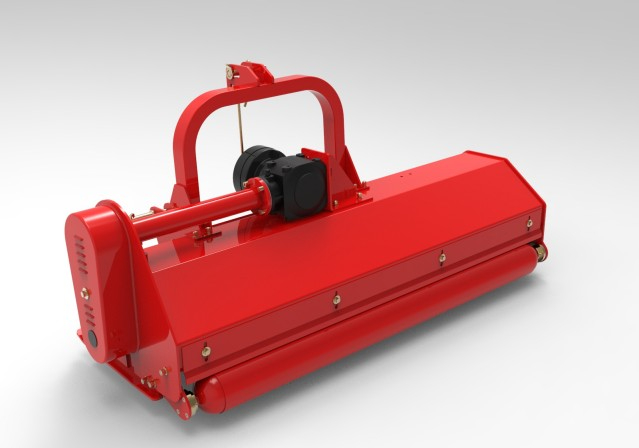

The New Design DPS-A is a PTO-mounted agricultural equipment specifically designed to handle dense grass and stubborn scrub that a regular lawn mower may struggle with. Unlike traditional mowers, this advanced equipment is equipped with heavy-duty flails that have a unique hammer blade shape.
E-mail: johnson@aiemery.com
Specification Sheet for Flail Mower DPS-A
MODEL | DPS-A135 | DPS-A155 | DPS-A175 | DPS-A195 | DPS-A205 |
Dimensions(mm) | 1505×950×910 | 1705×950×910 | 1905×950×910 | 1905×950×910 | 1905×950×910 |
Structure Weight (kg) | 300 | 325 | 350 | 375 | 400 |
Cutting width (cm) | 135 | 155 | 175 | 195 | 205 |
Cutting height (mm) | 0-60mm | 0-60mm | 0-60mm | 0-60mm | 0-60mm |
Rotor diameter (mm) | 108 | 108 | 108 | 108 | 108 |
Belt No. | 3 | 4 | 4 | 4 | 4 |
Hammer Number | 24 | 24 | 28 | 32 | 32 |
Y blade | 48 | 48 | 56 | 64 | 64 |
Power Required (hp) | 20-30 | 30-40 | 40-50 | 40-50 | 40-50 |
