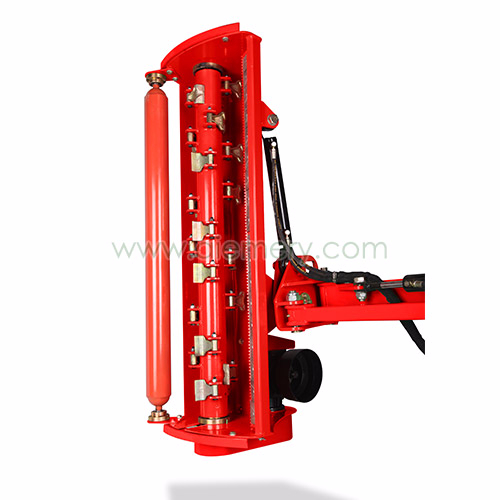

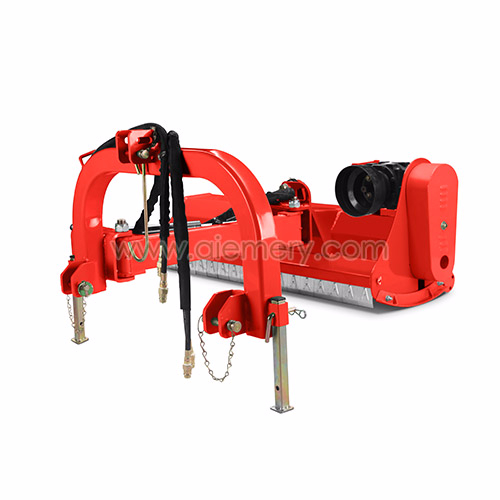

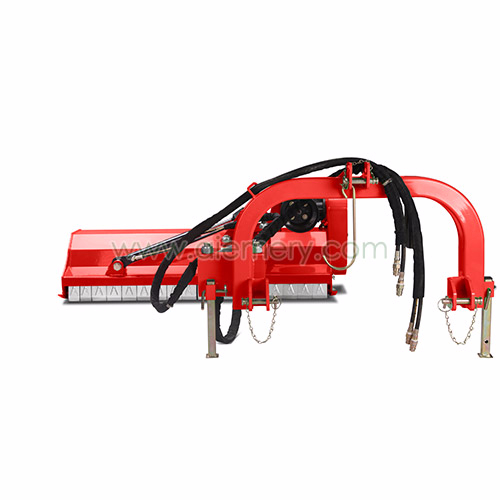

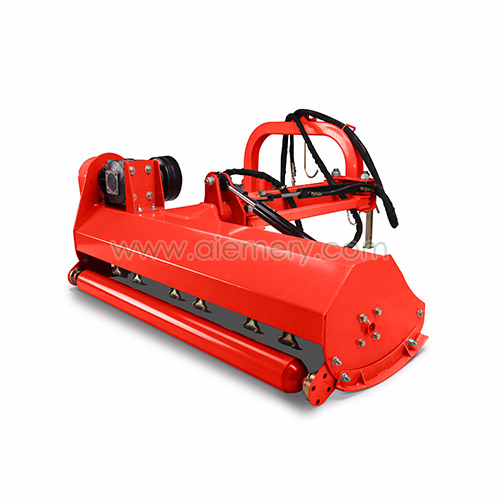

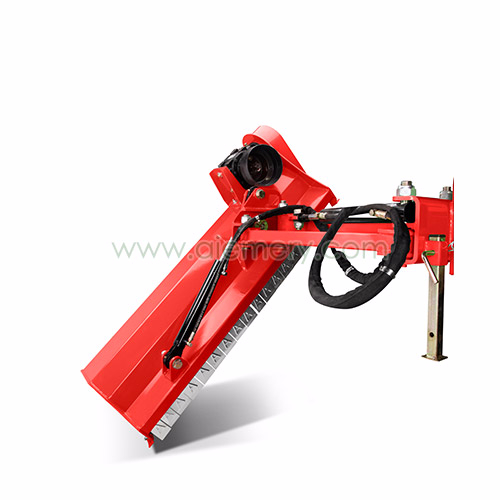

AGL Flail Mower
Offset / in-line mulcher for grass, residue of vegetables, bushes and pruning up to φ 2 cm, suited for tractors from 20 to 50 HP.
Ideal for cleaning green areas, gardens, slopes, ditches, banks of watercourses, road side banks.
Uses:
- The Verge Flail Mowers are flail mowers wuith hydraulic am for cleaning larger,wider areas,roadsides verges,orchards and various inclining and declining land surfaces;
- Specially designed for universal use the head of the mower can be operate in line with the tractor or offset for verge maintenance and field boundaries.
Feature:
- The Verge Flail Mowers are suitable for roadside verge,tree trimming and general mulching;
- Hydraulic side adjustment;
- Hydraulic inclining adjustment;
- Rear roller wheel;-High power 50hp gearbox;
- Self leveing;
- High strength mulching blades;
- Safety flaps;
- Extra strong and designed with safety in mind;
- Support legs for storage;
- Solid hitch.
The Verge Flail Mowers are mulcher with hydraulic arm for clearing larger, wider areas, roadsides verges, orchards and green areas.
1.Fitted with a high power 50hp gear box;
2.Cutting height controlled by adjustable skids;
3.High strength mulching blades
4. Hammer blade
Main Specification on AGL145 Flail Mower:
AGL-145 Model | SPECIFICATIONS |
Suited to: | 30 - 45hp Tractors |
3-Point Linkage: | Cat. 1 |
Offset: | Hydraulic Reach |
Offset from Centre: | Yes |
Reach Angle Up: | 90 Degrees |
Reach Angle Down: | 45 Degrees |
DIMENSIONS(L×W×H) | 1570x1610x605mm |
Weight: | 285kg |
Gearbox: | 50hp |
Cutting Width: | 1400mm |
Blade Type: | 'Y' & Hammer |
Mount: | Rear |
PTO: | 540r/min |
